centos7安装docker和k8s的记录

修改yum仓库

阿里云跳过

  1. 安装yum工具
Lang: bash
1yum install -y yum-utils device-mapper-persistent-data lvm2
  1. 备份原仓库文件
Lang: bash
1mv /etc/yum.repos.d/CentOS-Base.repo /etc/yum.repos.d/CentOS-Base.repo.backup
  1. 添加阿里云仓库文件
Lang: bash
1yum-config-manager --add-repo http://mirrors.aliyun.com/repo/Centos-7.repo
  1. 修改为基础仓库文件
Lang: bash
1mv /etc/yum.repos.d/Centos-7.repo /etc/yum.repos.d/CentOS-Base.repo
  1. 添加docker的阿里云源
Lang: bash
1yum-config-manager --add-repo http://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo
  1. 更新缓存
Lang: bash
1yum makecache fast

安装docker-ce

  1. yum安装docker
Lang: bash
1yum install -y docker-ce
  1. 配置镜像加速器
Lang: bash
 1mkdir -p /etc/docker
 2vim /etc/docker/daemon.json
 3{
 4    "exec-opts": ["native.cgroupdriver=systemd"],
 5    "log-driver": "json-file",
 6    "log-opts": {
 7        "max-size": "100m"
 8    },
 9    "storage-driver": "overlay2",
10    "storage-opts": [
11        "overlay2.override_kernel_check=true"
12    ]
13}
14systemctl daemon-reload
15systemctl restart docker

禁用linux swap

  1. 编辑/etc/fstab,注释swap行
  2. 输入swapoff -a
  3. 重启

禁用selinux

Lang: bash
1setenforce 0

关闭防火墙

Lang: bash
1systemctl disable firewalld
2systemctl stop firewalld

设置k8s源

Lang: bash
1vim /etc/yum.repos.d/kubernetes.repo
2[kubernetes]
3name=Kubernetes
4baseurl=http://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64
5enabled=1
6gpgcheck=0
7repo_gpgcheck=0
8gpgkey=http://mirrors.aliyun.com/kubernetes/yum/doc/yum-key.gpg
9       http://mirrors.aliyun.com/kubernetes/yum/doc/rpm-package-key.gpg

安装kubectl

Lang: bash
1yum install -y kubelet kubeadm kubectl --disableexcludes=kubernetes
2vim /etc/sysctl.d/k8s.conf
3net.bridge.bridge-nf-call-ip6tables = 1
4net.bridge.bridge-nf-call-iptables = 1
5net.ipv4.ip_forward = 1
6sysctl --system
7systemctl daemon-reload
8systemctl restart kubelet

设置自启动

Lang: bash
1systemctl enable docker && systemctl start docker
2systemctl enable kubelet && systemctl start kubelet

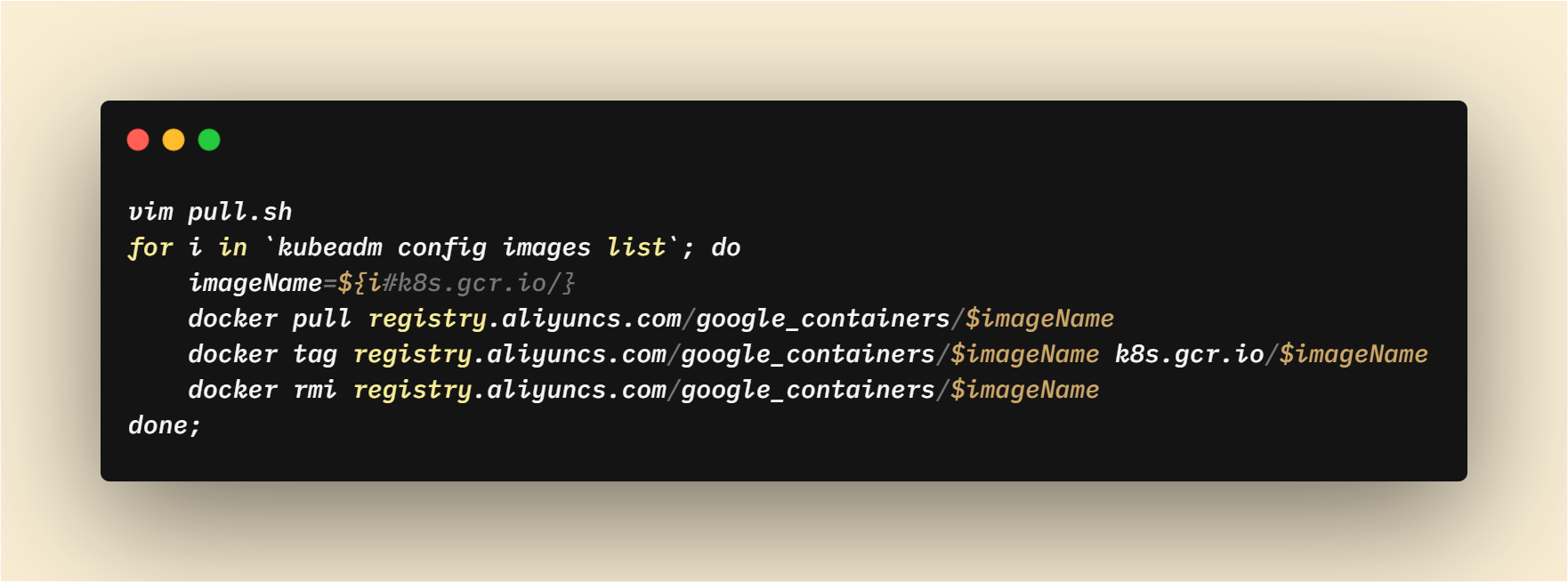

拉取镜像

拉取镜像

初始化kubeadm

基于flannel

Lang: bash
1kubeadm init --kubernetes-versio=$(kubeadm version -o short) --apiserver-advertise-address=192.168.1.109 --pod-network-cidr=10.244.0.0/16
2mkdir -p $HOME/.kube
3sudo cp -i /etc/kubernets/admin.conf $HOME/.kube/config
4sudo chown $(id -u):$(id -g) $HOME/.kube/config

取消污点

Lang: bash
1kubectl taint nodes --all node-role.kubernetes.io/master-

安装flannel

Lang: bash
1docker pull quay.azk8s.cn/coreos/flannel:v0.11.0-amd64
2docker tag quay.azk8s.cn/coreos/flannel:v0.11.0-amd64 quay.io/coreos/flannel:v0.11.0-amd64
3docker rmi quay.azk8s.cn/coreos/flannel:v0.11.0-amd64
4kubectl apply -f https://raw.githubusercontent.com/coreos/flannel/master/Documentation/kube-flannel.yml

安装dashboard

Lang: bash
1wget https://raw.githubusercontent.com/kubernetes/dashboard/v2.0.0-beta8/aio/deploy/recommended.yaml
2kubectl apply -f kubernetes-dashboard.yaml

修改dashboard类型

Lang: bash
1kubectl edit svc kubernetes-dashboard -n kubernetes-dashboard
2type: NodePort
3kubectl get svc kubernetes-dashboard -n kubernetes-dashboard

创建管理员

Lang: bash
1#Create a new ServiceAccount
2kubectl create serviceaccount k8sadmin -n kube-system
3
4#Create a ClusterRoleBinding with Cluster Admin Privileges
5kubectl create clusterrolebinding k8sadmin --clusterrole=cluster-admin --serviceaccount=kube-system:k8sadmin
6
7#Get the token
8kubectl get secret -n kube-system | grep k8sadmin | cut -d " " -f1 | xargs -n 1 | xargs kubectl get secret  -o 'jsonpath={.data.token}' -n kube-system | base64 --decode

登录

Lang: bash
1kubectl get secret --all-namespaces
2kubectl describe secret admin-token-xxx -n kube-system

使用firefox打开 https://<master-ip>:<svc-port>

增加nodes

  1. 创建token(master)
Lang: bash
1kubeadm token create
  1. 获取token(master)
Lang: bash
1kubeadm token list
  1. 获取hash(master)
Lang: bash
1openssl x509 -pubkey -in /etc/kubernetes/pki/ca.crt | openssl rsa -pubin -outform der 2>/dev/null | \
2   openssl dgst -sha256 -hex | sed 's/^.* //'
  1. 修改hostname(node)
Lang: bash
1vim /etc/hostname
2reboot
  1. 添加(node)
Lang: bash
1kubeadm join --token=9o4dwm.u0pdm2tdf95gidqq 192.168.1.109:6443 --discovery-token-ca-cert-hash sha256:8be084a0278361aa8ec776f366f51b64195e444ae70388af5d8460bbf6844fff

其他命令

重制(可能失效): kubeadm reset

国内镜像表

全局 国内 格式 例子
gcr.io gcr.azk8s.cn gcr.azk8s.cn//: gcr.azk8s.cn/google_containers/hyperkube-amd64:v1.13.5
quay.io quay.azk8s.cn quay.azk8s.cn//: quay.azk8s.cn/deis/go-dev:v1.10.0
